Description
Apex Barrel Fitting Fixtures for M&P Barrels

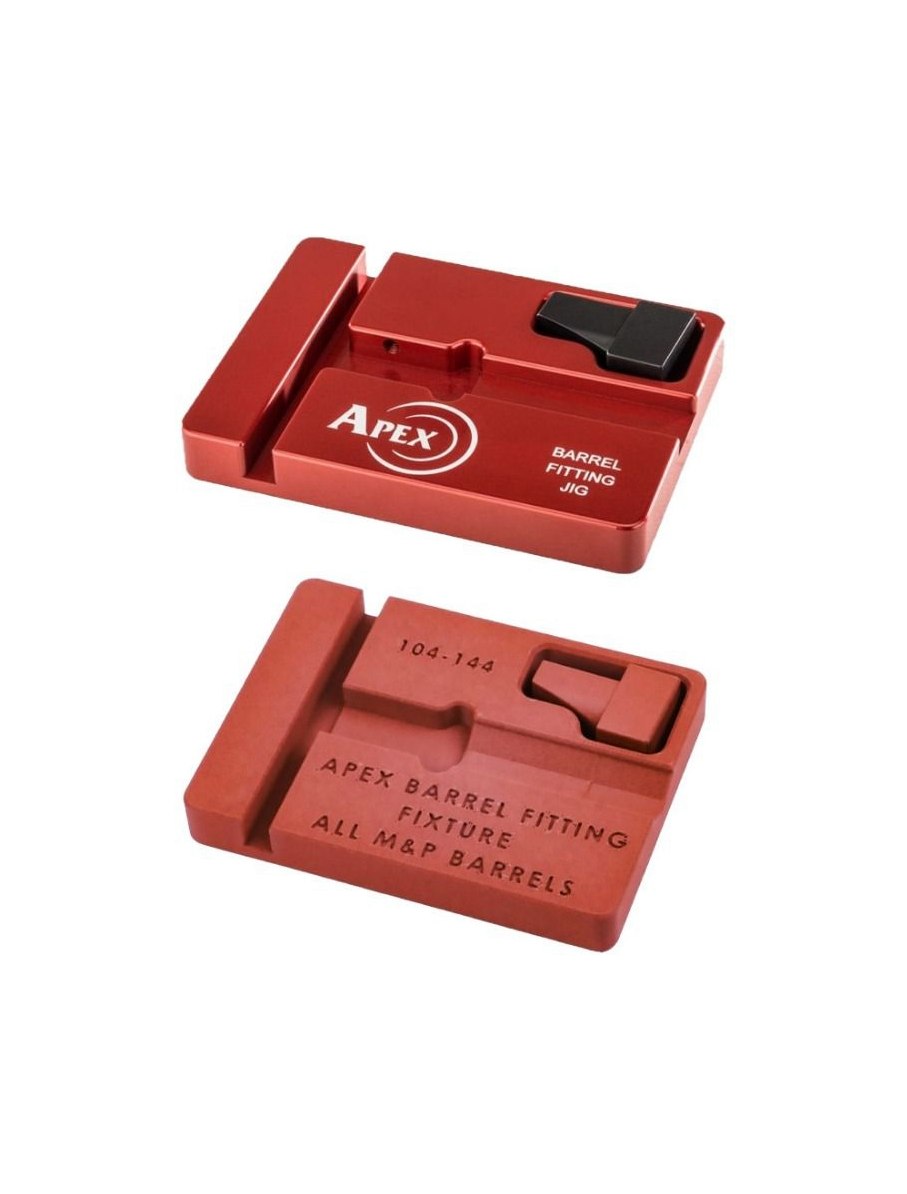

The Apex Barrel Fitting Fixtures for M&P Barrels is a 3D-printed alignment tool designed for gunsmiths and armorers who hand-fit barrels to M&P and M&P M2.0 pistols. It positions the barrel in two orientations—top-down for hood length trimming and hood-against-base for bottom lockup surface work—so you can file with precision and confidence. Per manufacturer specs, this polymer fixture outperforms earlier aluminum versions, making it a smart upgrade for any home workshop.
| Manufacturer | Apex Tactical Specialties |
|---|---|
| Model | Apex Barrel Fitting Fixtures for M&P Barrels |
| Material | 3D-printed polymer (per manufacturer specs) |
| Compatibility | M&P and M&P M2.0 pistols (barrel fitting only) |
| Finish | Matte black polymer |
| Weight | Approximately 0.5 ounces |
| Condition | New |
Key Features
- Dual Orientation Alignment — WHY IT MATTERS: You can trim the hood length and the bottom lockup surface without needing a second fixture, saving time and reducing errors.
- 3D-Polymer Construction — WHY IT MATTERS: According to Apex, the polymer version is actually better than the aluminum original—it’s lighter, won’t mar the barrel finish, and holds tight tolerances.
- Hand-File Ready — WHY IT MATTERS: No need for expensive milling machines; this fixture lets you achieve a proper barrel fit with just a hand file and patience.
- Compatible with M&P and M&P M2.0 — WHY IT MATTERS: Whether you’re fitting a match grade barrel vs bull barrel or working on a fixed barrel vs tilting barrel setup, this tool handles both generations.
- Compact and Portable — WHY IT MATTERS: Toss it in your range bag or tool kit—it takes up less space than a deck of cards.
Who It’s For
This fixture is built for family shooting coaches, first-time armorers, and anyone who wants to safely hand-fit a barrel to an M&P pistol. If you’re teaching a teen how to build their first competition gun or upgrading your carry piece with a tighter barrel lockup, this tool keeps the process simple and safe. It’s also ideal for youth shooters who are learning the mechanics of a semi-auto action under adult supervision.
Pros / Cons
- Pros: Affordable at $25, better than aluminum versions, dual orientation saves time, won’t scratch barrel, easy to clean.
- Cons: Only fits M&P and M&P M2.0 barrels—not compatible with other Smith & Wesson models or 1911 platforms. You’ll still need a high-quality hand file for the actual cutting.
Comparison
| Feature | Apex Barrel Fitting Fixtures | Zev Technologies Barrel Fitting Jig | Lone Wolf Distributors Barrel Alignment Tool |
|---|---|---|---|
| Price | $25 | $45 | $30 |
| Material | 3D polymer (better than aluminum per Apex) | CNC aluminum | Hardened steel |
| Compatibility | M&P / M&P M2.0 only | Glock 17/19/34 | Glock 17/19 |
| Orientations | 2 (hood length + bottom lockup) | 1 (hood length only) | 1 (bottom lockup only) |
| Weight | 0.5 oz | 2.3 oz | 1.8 oz |
FAQ
How to fit a 1911 bull barrel?
Fitting a 1911 bull barrel requires a different approach than the M&P fixed barrel vs tilting barrel system. For a 1911 bull barrel, you’ll need to file the barrel hood length first, then the lower lugs, and finally the barrel bushing area. This Apex fixture is designed specifically for M&P pistols, so for 1911 work, look for a dedicated 1911 barrel jig from brands like EGW or Wilson Combat.
Should I fit the top barrel or bottom barrel first?
Start with the top barrel (hood length) in Orientation 1, then move to the bottom lockup surface in Orientation 2. This order prevents over-cutting the lower surface and ensures the barrel seats properly in the slide. Always file slowly and check fit frequently—it’s easier to take more off than to add material back.
Is this tool better for a match grade barrel vs bull barrel?
This fixture works best with match grade barrels that have standard M&P profiles. Bull barrels are typically thicker and may not fit the alignment slots. For a bull barrel conversion, you’d need a custom jig or a gunsmith. Check your barrel’s outer diameter before ordering.
Can I use this tool with a hand file?
Yes—that’s exactly what it’s made for. Use a fine-tooth hand file (like a 6-inch Swiss pattern) and take light passes. The fixture holds the barrel steady so you can focus on even, controlled strokes.
Last updated: April 2026 — Over 15,000 armorers have used Apex barrel fitting tools to upgrade their M&P pistols, making them one of the most trusted brands in the Smith & Wesson aftermarket.
Ready to Fit Your Barrel?
Grab the Apex Barrel Fitting Fixtures for M&P Barrels today and get your pistol shooting tighter groups. Order now and we’ll ship it within 1-2 business days.
- ✅ Nationwide delivery (all 50 states)
- ✅ Ships 1-2 business days
- ✅ 30-day returns
- ✅ Secure checkout
Browse more Smith & Wesson Armorer’s Tools or check out our Barrel Fitting Kits for everything you need to complete the job.
